Bene-Farm
1380mm type fan, the power of general type of fan is 1100w or 1500w, but our fan is 750w. so, if you take use of it, you just need pay half of the cost.
Details
Specification
Frame material | FRP- Fiberglass Reinforced Plastic |
Blade materia | Aluminum Alloy or Nylon and Glass fiber |
Shutter material | PVC
|
Drive | Direct drive |
Technical Parameters
Model | Blade diameter (mm) | motor RPM | Air flow (m3/h) | Power (KW) | Voltage (V) | Noise Decibels (DB) | (Blade material) | Size (mm) |
BC-148 | 1250 | 440 | 45000 | 0.75 | 380/220 | ≤68 | FRP | 1480*1480*600 |
BC-128 | 1050 | 560 | 38000 | 0.75 | 380/220 | ≤68 | FRP | 1280*1280*600 |
BC-110 | 880 | 700 | 32000 | 0.75 | 380/220 | ≤68 | FRP | 1100*1100*600 |
Advantages:
1) Energy saving
the power of general type of fan is 1100w or 1500w, but our fan is 750w. so, if you take use of it, you just need pay half of the cost.
2)Large air output
the measured air volume of better quality type of fan is about 40000 cubic meters, but our fan can reach to 48000 cubic meters.
3)Lower noise
our perfect design concept and material decrease the noise, and it can work steady.
4)Long lifetime
The outline border of fan is produced by the material of glass fiber reinforced plastics which resist corrosion and air slake.
5) Low failure rate

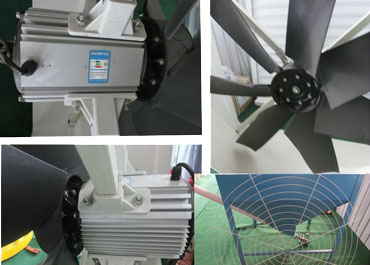

Because of the electric motor and fan blade connected directly, ( directly drive), it has no belts, no belt pulley, no bearing and other damageable rotating components,and the rotation speed of our motor is just 450rpm, so its failure rate is very low.
