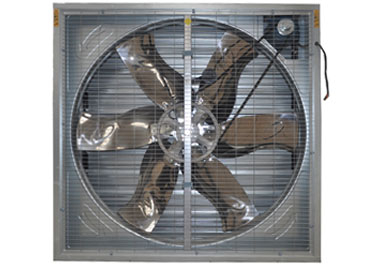

Fans mainly consists of blade, motor, frame, protect net, bracing cage, shutters. The motor drives blade to cause air flow and louver window can open and close automatically to keep the dust from entering.
Details
Fan size: | 1380mm×1380mm×450mm |
Airflow: | 44000m3/h |
Weight: | 68kg |
Motor | Chinese ,Other motor accordingly, IP 54/55 |
Motor technical data | 1.1Kw 380 V 50 Hz three phase |
Motor RPM | 1400r/min |
Motor hole | Installation hole of motor and nut are all six angles instead of the roundness. |
Blade diameter | φ 1250mm (50inch) |
Blade No. | 6 |
Blade material | BA430 stainless steel. Thickness 1.2mm |
Blade RPM | 437r/min |
Shutter | Centrifugal system opening, spring close system, shutter can be opened at 90 degree. |
Shutter No. | 10 |
Shutter thickness | Hot galvanized sheet. Thickness 0.8 mm and the middle piece is 1.2mm |
Shutter Linkage | Aluminum |
belt | Chinese belt and Mitsubishi belt can be choose |
Small belt pulley | Cast Iron |

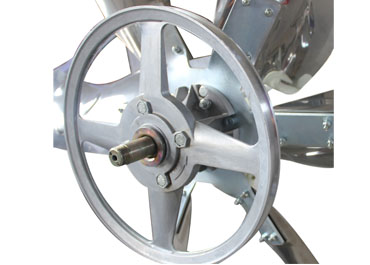

Big belt pulley | Aluminum alloy |
Frame | Hot galvanized sheet, high anti-corrosive durability, zinc coating thickness 180g/m2 |
Frame thickness | Top and bottom frame sheet is 1mm; the left and right sheet is 0.8mm |
