MIF25T-R2W

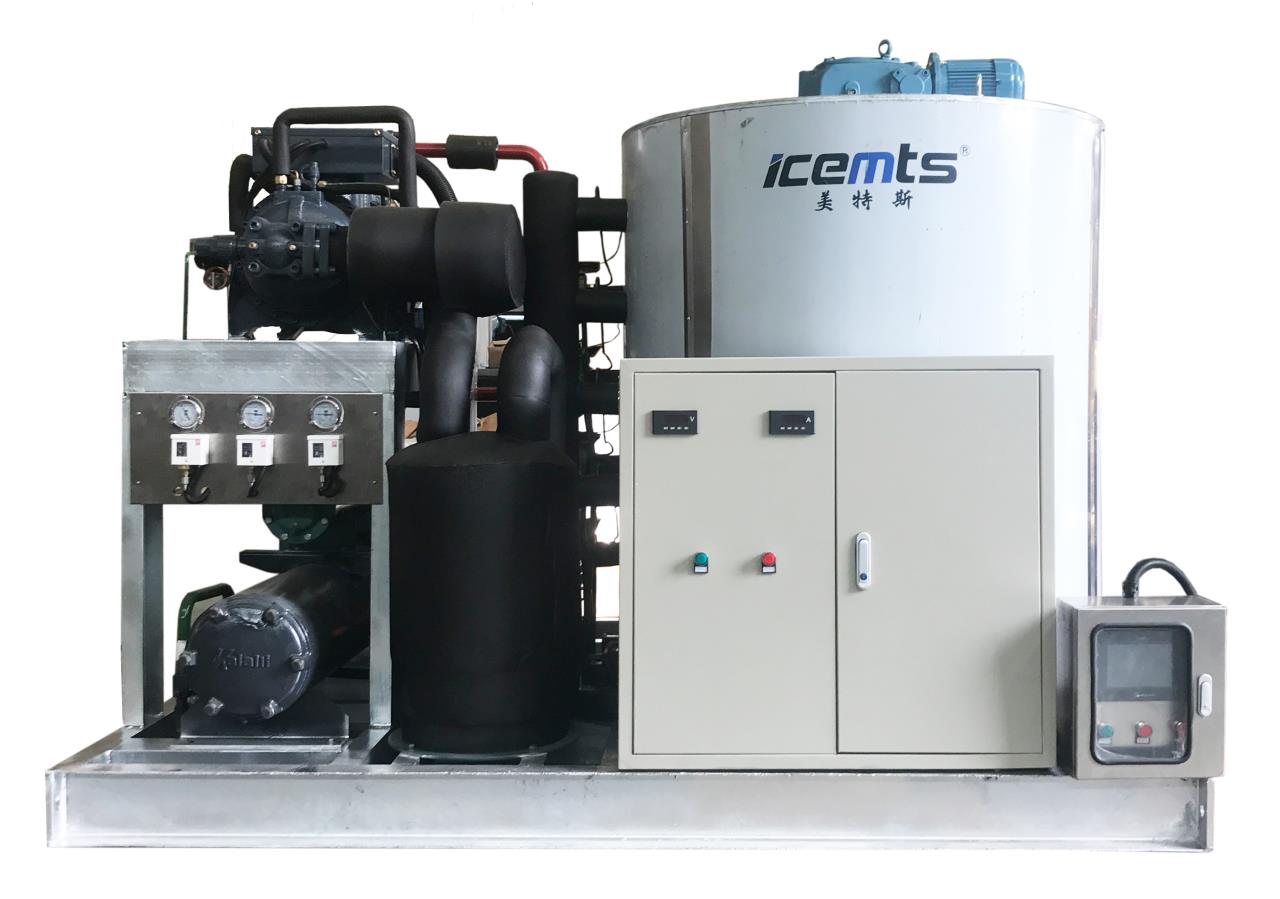

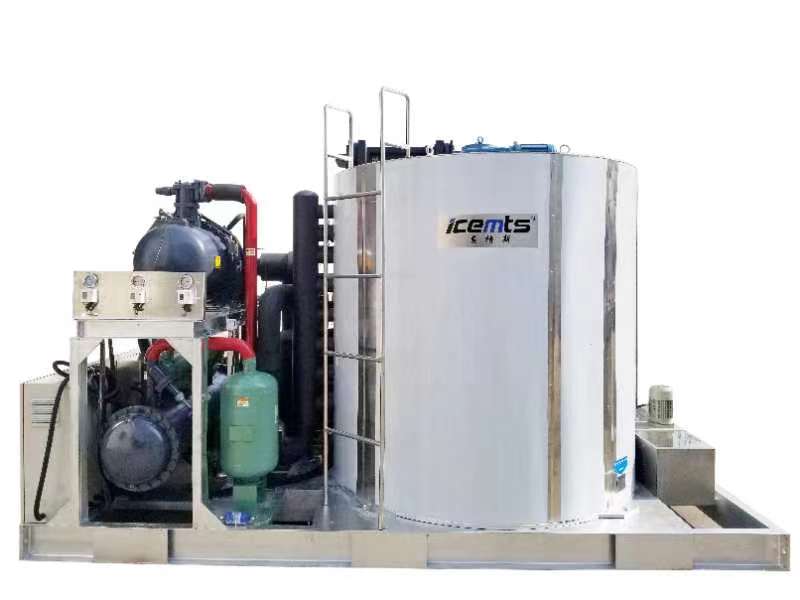

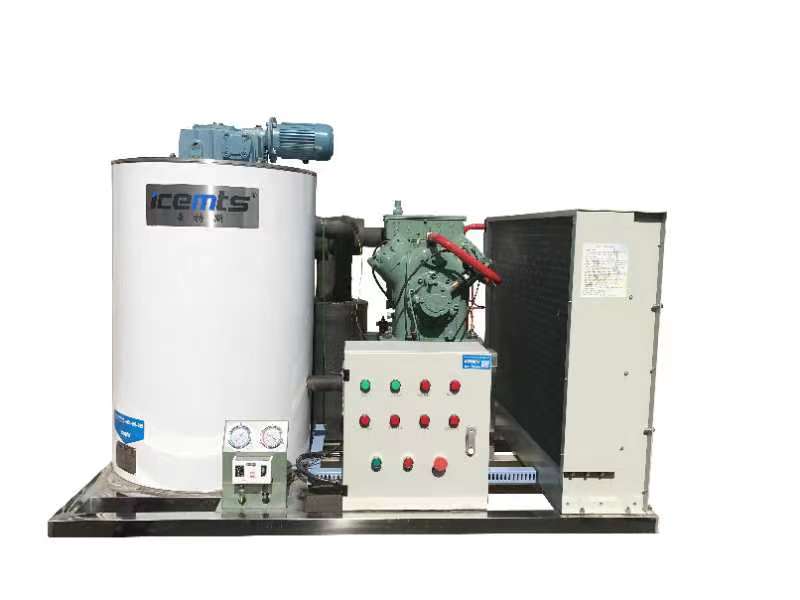

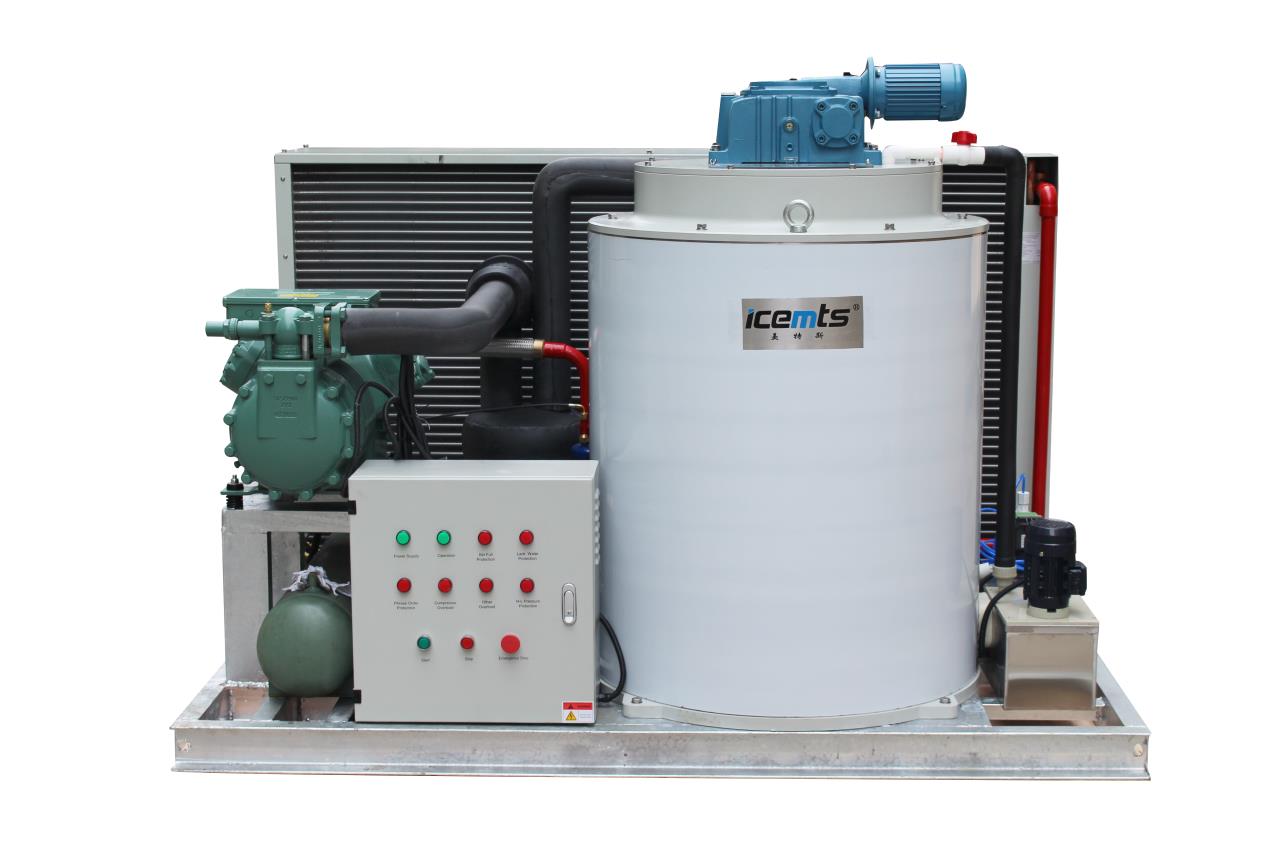

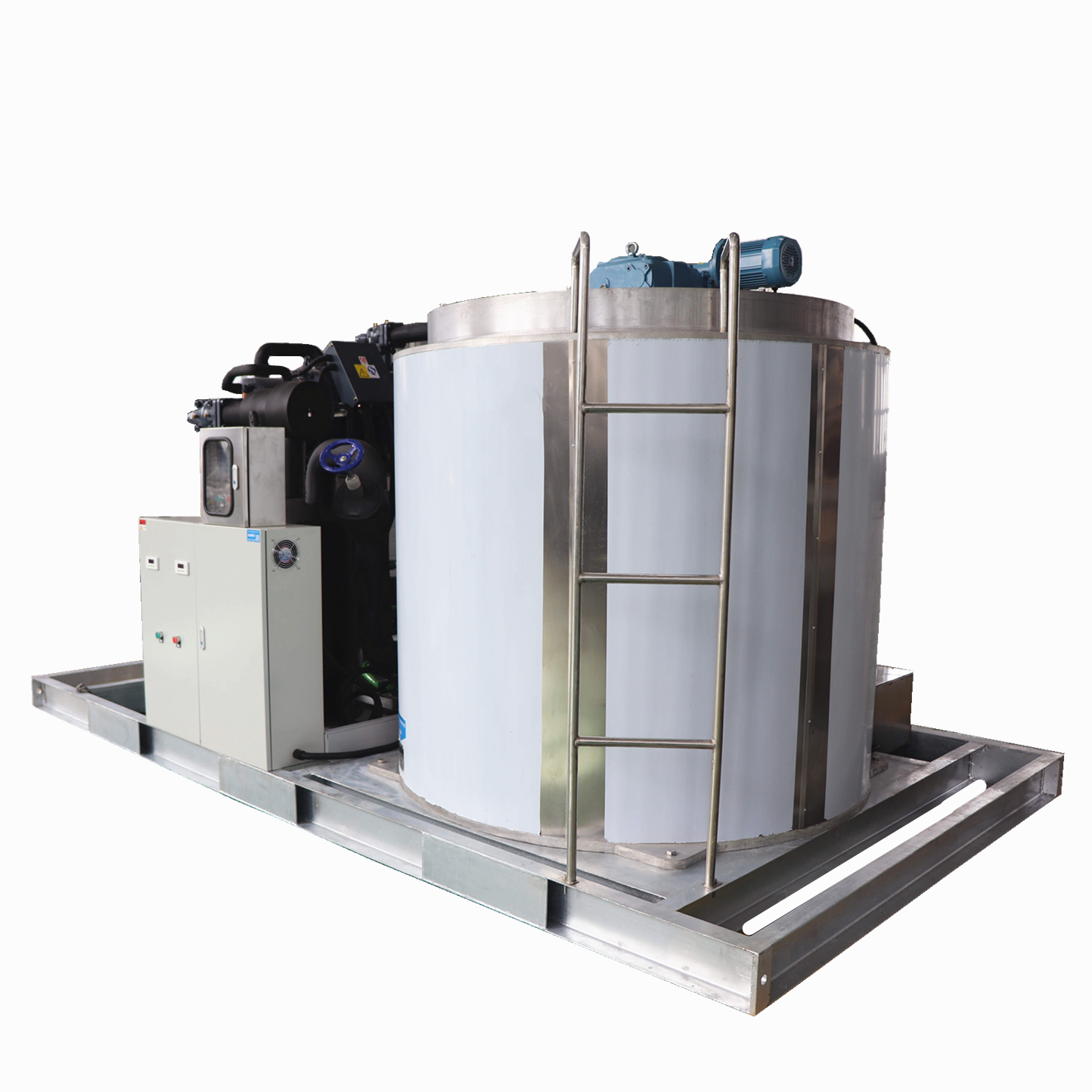

Our flake ice maker is made of durable 304 stainless steel, with a 25-ton capacity per day and a reliable screw rod compressor. It has been exported to multiple countries for high-quality ice production. The machine is making ice continuously. So it is recommended to equip an ice bin for it. Our machine has auto control system which is able to stop the machine when the ice bin is full.
NO. | NAME | SPEICIFICATION |
01 | Capacity | 25T/24h |
02 | Refrigerating capacity | 190.6KW |
03 | Evaporation temperature | -20℃ |
04 | Condensation temperature | 40℃ |
05 | Standard ambient temperature | 25℃ |
06 | Standard feed water temperature | 20℃ |
07 | Total installed power | 99.70KW |
08 | Compressor input power | 89.20KW |
09 | Reducer power | 0.75 KW |
10 | Pump power | 0.75KW |
11 | Power of condensate pump | 7.5KW |
12 | Input power of cooling tower | 1.1KW |
13 | Voltage | 220V/380V, 50HZ/60HZ |
14 | Feedwater pressure | 0.1Mpa-0.5Mpa |
15 | Cryogen | R22A |
16 | Ice sheet temperature | -5℃ |
17 | Ice sheet thickness | 1.6mm-2.3mm |
18 | water consumption(M3/h) | 0.42 |
19 | Size of water pipe connection | 3/4’’ |
20 | Machine net weight | 5400KG |
21 | Overall dimensions of the unit (L * W * H)mm | 3500*2200*2500 |
