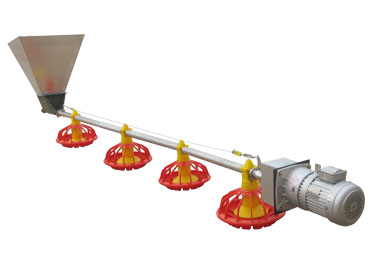

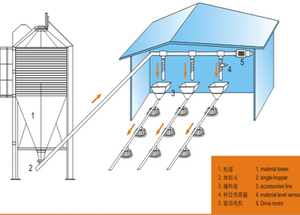

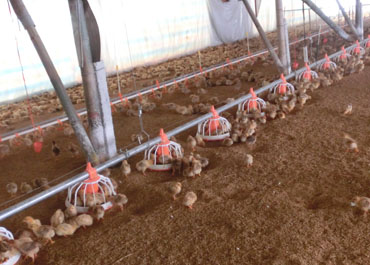

The main function of the feeding system is to convey the feed in the hopper into each tray to ensure the eating of the meat chickens and automatically control the conveying opening/closing of the motor by the material level sensor to achieve the aim of automatic feeding.
Details
The main function of the feeding system is to convey the feed in the hopper into each tray to ensure the eating of the meat chickens and automatically control the conveying opening/closing of the motor by the material level sensor to achieve the aim of automatic feeding.

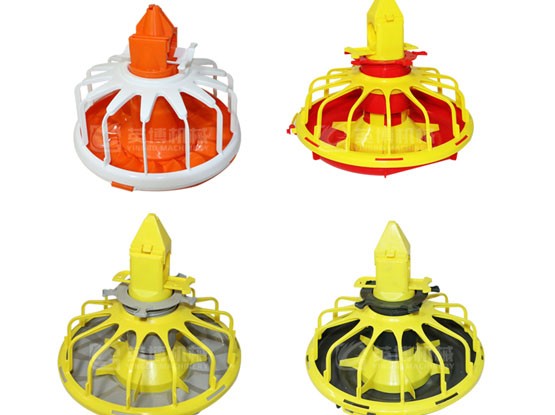

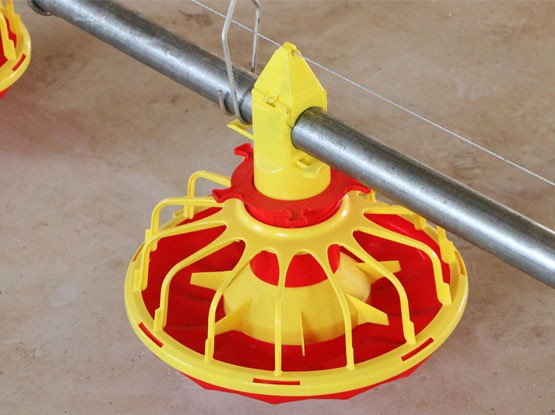

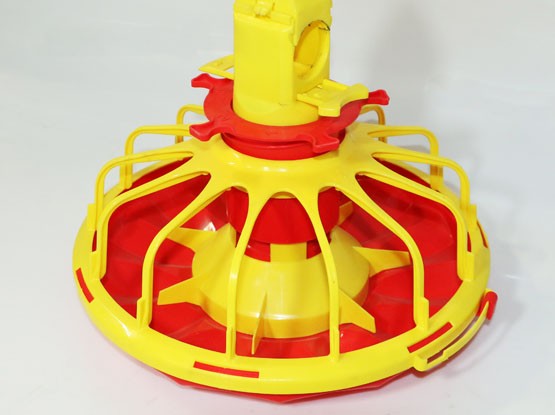

Feed pan is unique and won design, which consists of: | |
(1)Pan deep, use to keep feed inside feed pan.
| |
(2) Grill, used to disport chickens from each other.
| |
(3) Inside cone and adjust ring, used to adjust feed fall amount.
| |
Technical Parameter of feed system parts |

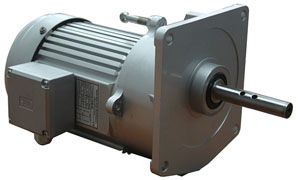

1. High-quality special driving reduction motor. Power: 0.75kw, Voltage: 380V/220v/440v Frequency: 50/60HZ, Three-phase/Single phase |
|

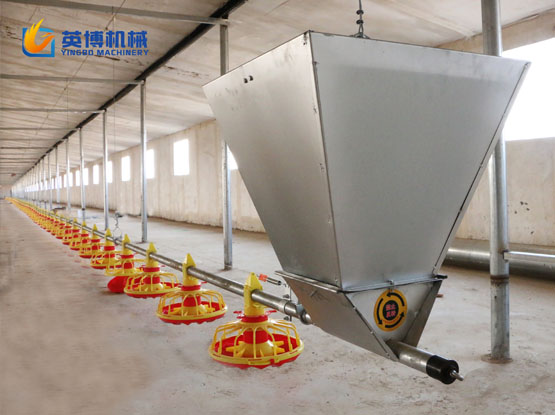

2. V-shaped Bin (with Hopper) Bin Volume: 115L, Hopper volume: 38L Material: Hot-DIP galvanized sheet |
|
3. Feeding system Diameter of conveying pipe: 45mm Material: Hot-DIP galvanized steel pipe with the zinc coating amount of more than 275 g/m2 Helical spring auger from South Africa, feeding capacity: 450kg/h. |
|

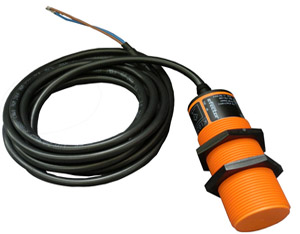

4. Material level sensor from Germany: Time delay range 0 to 2 hours. |
|
5.Durable hanging system, adjust system height |
|
